应用SynchronizationContext来实现对thread-safe UI的同步访问的2种不同Programming Model

2012年08月17日 ⁄ 综合 ⁄ 共 6188字 ⁄ 字号小中大 ⁄ 评论关闭

前言：

当有多个threads访问某个thread-safe的资源如UI时，必须有某种mechanism来保证这些thread marshaling。对于需要thread-safe的资源如果没有施加任何措施而被其他thread同时访问的话，会抛出如下类似的invalidoperationException

Cross-thread operation not valid: Control 'm_CounterLabel' accessed from a thread other than the thread it was created on.

excpetion screenshot如下：

Programming Model 1:

在下面的sample中，MyForm提供了一个叫做允许client访问来获得该UI的MySynchronizationContext的propertity。MySynchronizationContext是通过在在MyForm的Constructor中通过获得当前线程的上下文来初始化的。 MyForm也提供了Counter Property来更新服务端的Windows Forms label. 当然 .Counter只能被占有Form的当前thread来访问。

source code:

Service UI

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;

namespace UISynchronizationContext_Service
{
    public partial class MyForm : Form
    {
        private System.Windows.Forms.Label m_CounterLabel;
        System.Threading.SynchronizationContext m_SynchronizationContext;

        public MyForm()
        {
            InitializeComponent();
            m_SynchronizationContext = System.Threading.SynchronizationContext.Current;
            System.Diagnostics.Debug.Assert(m_SynchronizationContext != null);
        }

        public System.Threading.SynchronizationContext MySynchronizationContext
        {
            get
            {
                return m_SynchronizationContext;
            }
        }

        public int Counter
        {
            get { return Convert.ToInt32(m_CounterLabel.Text); }
            set { m_CounterLabel.Text = value.ToString(); }
        }
        private void MyForm_Load(object sender, EventArgs e)
        {

}
}
}

Service Contract and Implementation

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.ServiceModel;

namespace UISynchronizationContext_Service
{
    [ServiceContract]
    public interface IFormManager
    {
        [OperationContract(IsOneWay = true)]
        void IncrementLabel();
    }

    class MyContract:IFormManager
    {
        public void IncrementLabel()
        {
            MyForm form = System.Windows.Forms.Application.OpenForms[0] as MyForm;
            System.Diagnostics.Debug.Assert(form != null);
            SendOrPostCallback callback = delegate
            {
                form.Counter++;
            };

            form.MySynchronizationContext.Send(callback, null);

        }
    }

    static class Program
    {
        /// <summary>
        /// The main entry point for the application.
        /// </summary>
        [STAThread]
        static void Main()
        {
            Application.EnableVisualStyles();
            Application.SetCompatibleTextRenderingDefault(false);

ServiceHost host = new ServiceHost(typeof(MyContract));
host.Open();

            Application.Run(new MyForm());
            host.Close();
        }
    }
}

运行结果：

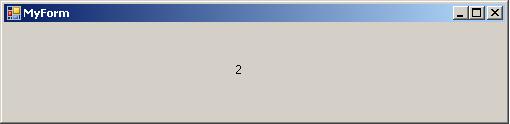

Service Updated UI by multiple threads

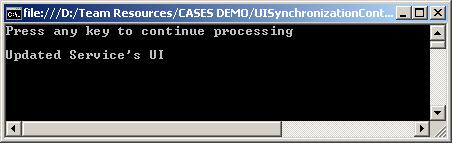

#1 Client Calls for service to update service's UI

#2 Client Calls for service to update service's UI

缺点：

该programming model的defiency在于：服务(service)和UI form过于耦合。很显然，这是一种不好的设计模式。如果在Form中需要更新多个control的话，会非常不方便。比较理想的设计方法是将Service和UI form decouple，两者不受相互影响。

Programming Model 2:

那么，如何实现这样的programming model呢？我们可以自定义thread-safe control。将一些与windows form的同步上下文的要求thread-safe的操作封装在这些所谓的safe control里面，从而将其与service 脱耦。

例如，我们对上面代码略作修改：

1. 我们在Form上添加一个m_MyTextBox的引用, 但是其实这个m_MyTextBox是一个MyTexbBox的reference，其是一个自定义的derived from System.Windows.Forms.Text的safe textbox class。我们将其某些Method或者Propertity进行了Override以便其运行在thread-safe之下：

以下是MyTextBox这个自定义TextBox的definition

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using System.Threading;

namespace UISynchronizationContext_Service
{
    class SafeTextBox:TextBox
    {
        SynchronizationContext m_SynchronizationContext = SynchronizationContext.Current;

        public override string Text
        {
            set
            {
                SendOrPostCallback setText = delegate(object text)
                {
                    base.Text = text as string;
                };
                m_SynchronizationContext.Send(setText, value);
            }
            get
            {
                string text = String.Empty;
                SendOrPostCallback getText = delegate
                {
                    text = base.Text;
                };
                m_SynchronizationContext.Send(getText, null);
                return text;
            }
        }

}
}

然后假设在ServiceContract中新增加一个Operation:

[OperationContract(IsOneWay = true)]

void UpdateTextBox(string textBoxValue);

用来实现对TextBox内Text的修改。

其Implementation实现如下：

            form.MySynchronizationContext.Send(callback, null);

        }

       public void UpdateTextBox(string textBoxValue)
        {
            MyForm form = System.Windows.Forms.Application.OpenForms[0] as MyForm;
            form.TextBoxValue = textBoxValue;
        }
    }

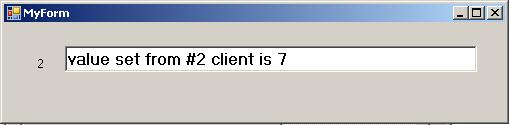

就只有一条非常简单的语句！而那些所有对Control的同步上下文操作都被封装在了其safe control中了：） so cool.

当然，client代码也作简单修改如下：

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;

namespace UISynchronizationContext_Client
{
    class Program
    {
        static void Main(string[] args)
        {
            FormManagerClient proxy = new FormManagerClient();
            Console.WriteLine("Press any key to continue processing");
            Console.ReadLine();
            proxy.IncrementLabel();
            for (int i = 0; i < 10; i++)
            {
                proxy.UpdateTextBox("value set from #1 client is " + i.ToString());
                System.Threading.Thread.Sleep(2000);
            }
            Console.WriteLine("Updated Service's UI");
            Console.ReadLine();
        }
    }
}
